ST Suspension XTA Plus 3 Coilover Kit (E9X M3)
Spread the cost with Klarna. 18+, T&Cs apply, credit subject to status. Learn more (opens in a new tab)
Product Details

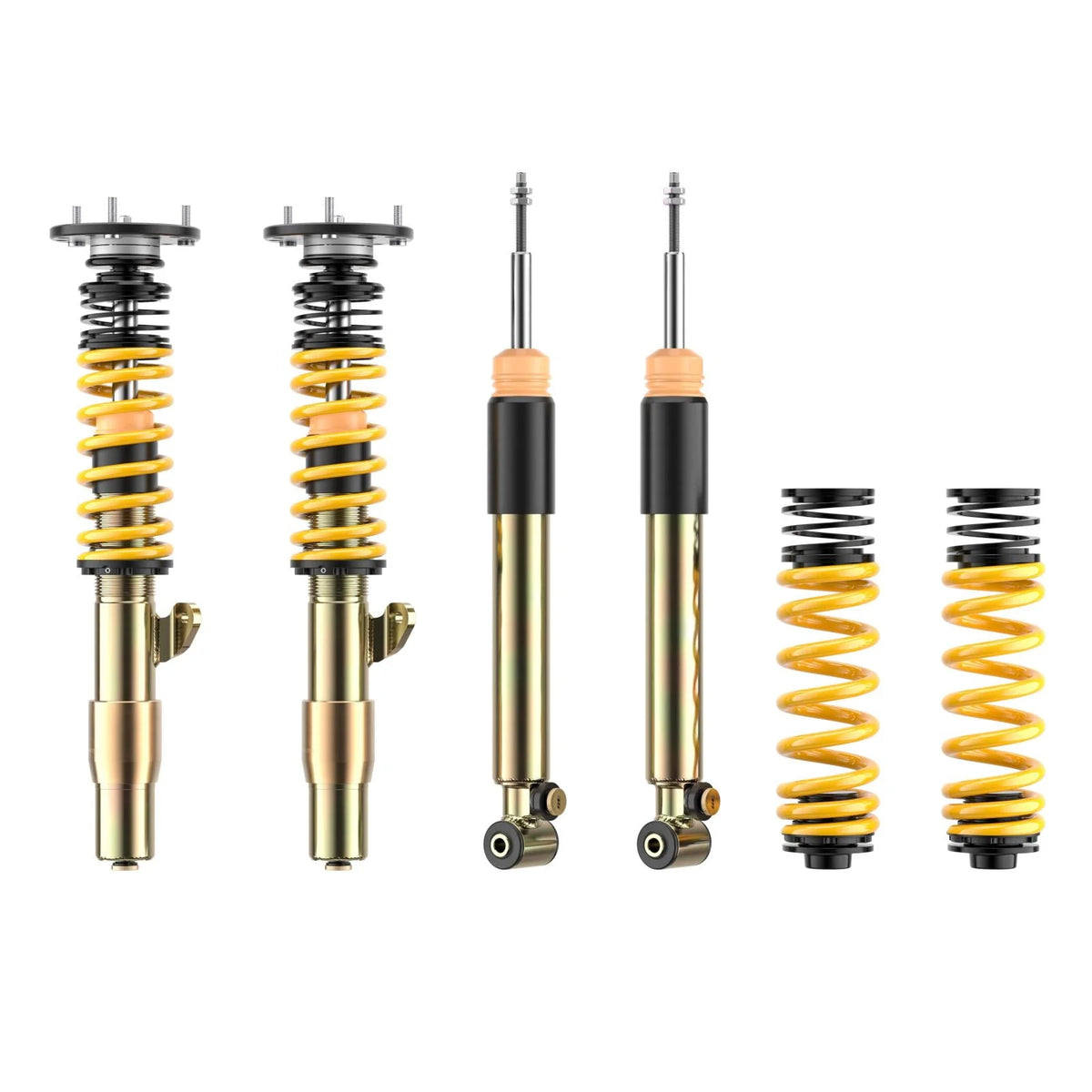

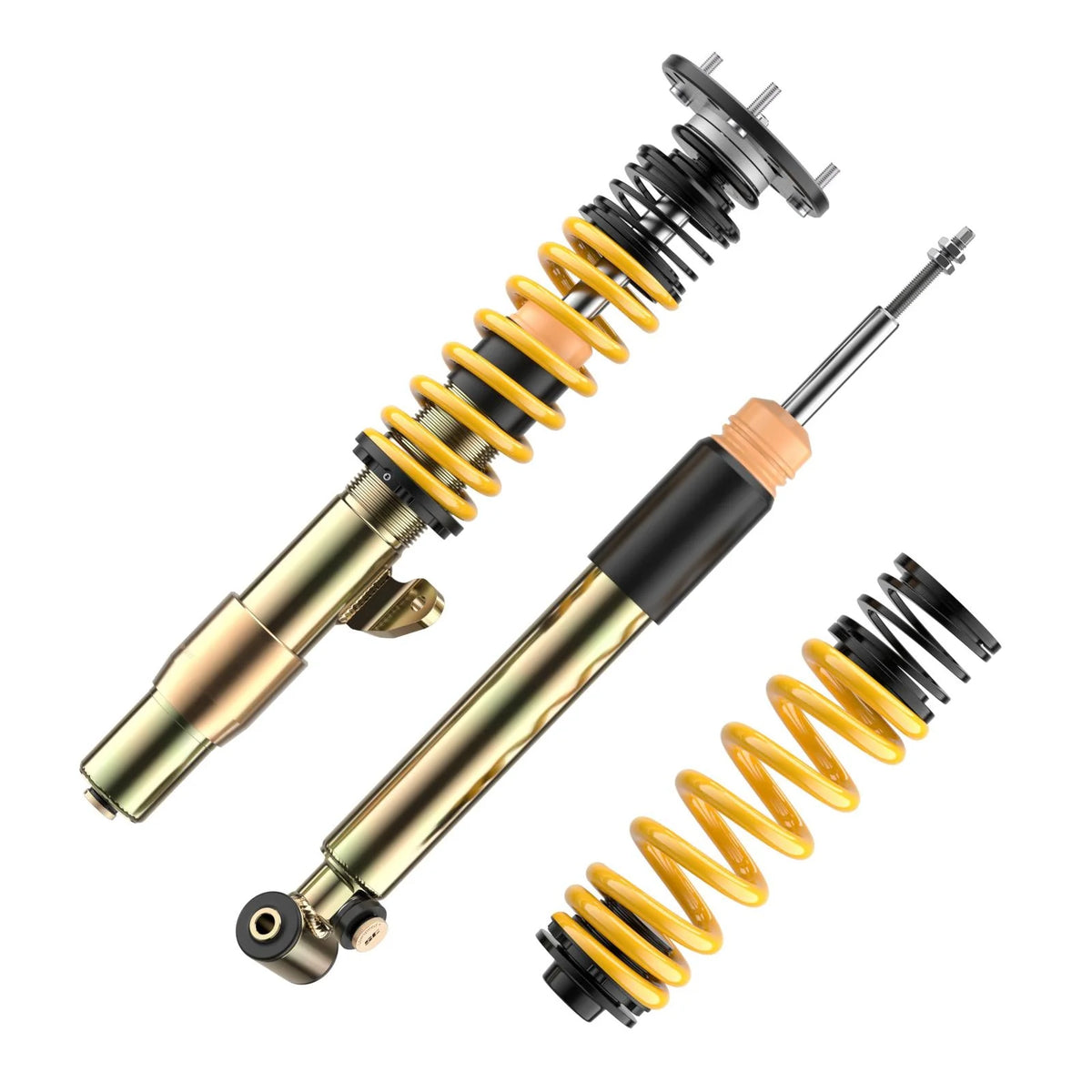

The ST XTA Plus 3 Coilover Kit for the BMW E90, E92 and E93 M3 is the highest-spec suspension upgrade in the ST range, designed for S65-powered M3 owners who want serious chassis control, detailed damping adjustment and improved alignment flexibility. Developed in partnership with KW Automotive, it offers KW-derived suspension performance in a more accessible package.
Unlike simpler coilover systems, the XTA Plus 3 features full 3-way damping adjustment, allowing independent control of rebound, low-speed compression and high-speed compression. This gives drivers the ability to fine-tune how the car behaves under braking, through weight transfer, over bumps and kerbs, and as it settles mid-corner.
The kit includes aluminium camber-adjustable top mounts, helping improve front-end grip, steering response and tyre contact patch control. This makes it especially well suited to fast-road and track-day setups, particularly for cars running semi-slick tyres, aggressive alignment or increased performance.
Built around a monotube damper design, the XTA Plus 3 is engineered to deliver consistent performance under heat, making it suitable for longer, more demanding driving sessions. Progressive springs help retain balanced road behaviour, while front and rear height adjustment allows the stance and centre of gravity to be set within the TÜV-certified lowering range.
This kit is designed exclusively for BMW E90 M3 Saloon, BMW E92 M3 Coupé and BMW E93 M3 Convertible models with the 4.0 V8 S65 engine. Motorsport-style top mounts may increase noise, vibration and harshness compared with OEM mounts.
Professional installation, alignment and corner balancing are highly recommended to get the best from the system.
Key Features -
- ST XTA Plus 3 Coilover Kit for BMW E90, E92 and E93 M3
- Highest-spec coilover kit in the ST suspension range
- Designed specifically for BMW E9X M3 S65 V8 applications
- Developed in partnership with KW Automotive
- Features full 3-way adjustable damping
- Independent rebound adjustment
- Independent low-speed compression adjustment
- Independent high-speed compression adjustment
- Allows detailed tuning for fast road, track day and high-grip tyre setups
- Includes aluminium camber-adjustable top mounts
- Helps improve steering response, front-end grip and camber stability
- Height adjustment at the front and rear
- Monotube damper design for consistent performance under heat
- KW-derived damping technology in a more accessible package
- Progressive springs for balanced fast-road behaviour
- Ideal for semi-slick tyres and track-focused alignment setups
- Supports sharper turn-in and improved mid-corner stability
- TÜV-certified lowering range
- Suitable for drivers wanting motorsport-grade adjustability without stepping up to full KW Clubsport or V4 systems
- Professional installation, alignment and corner balancing highly recommended
- Motorsport top mounts may increase NVH compared with OEM mounts
- Wheel and tyre clearance should be checked when using aggressive camber settings
- All adjusters remain easily accessible once fitted
Vehicle Compatibility -
- BMW E9X M3 2007–2013
- Designed for BMW E9X M3 applications only.

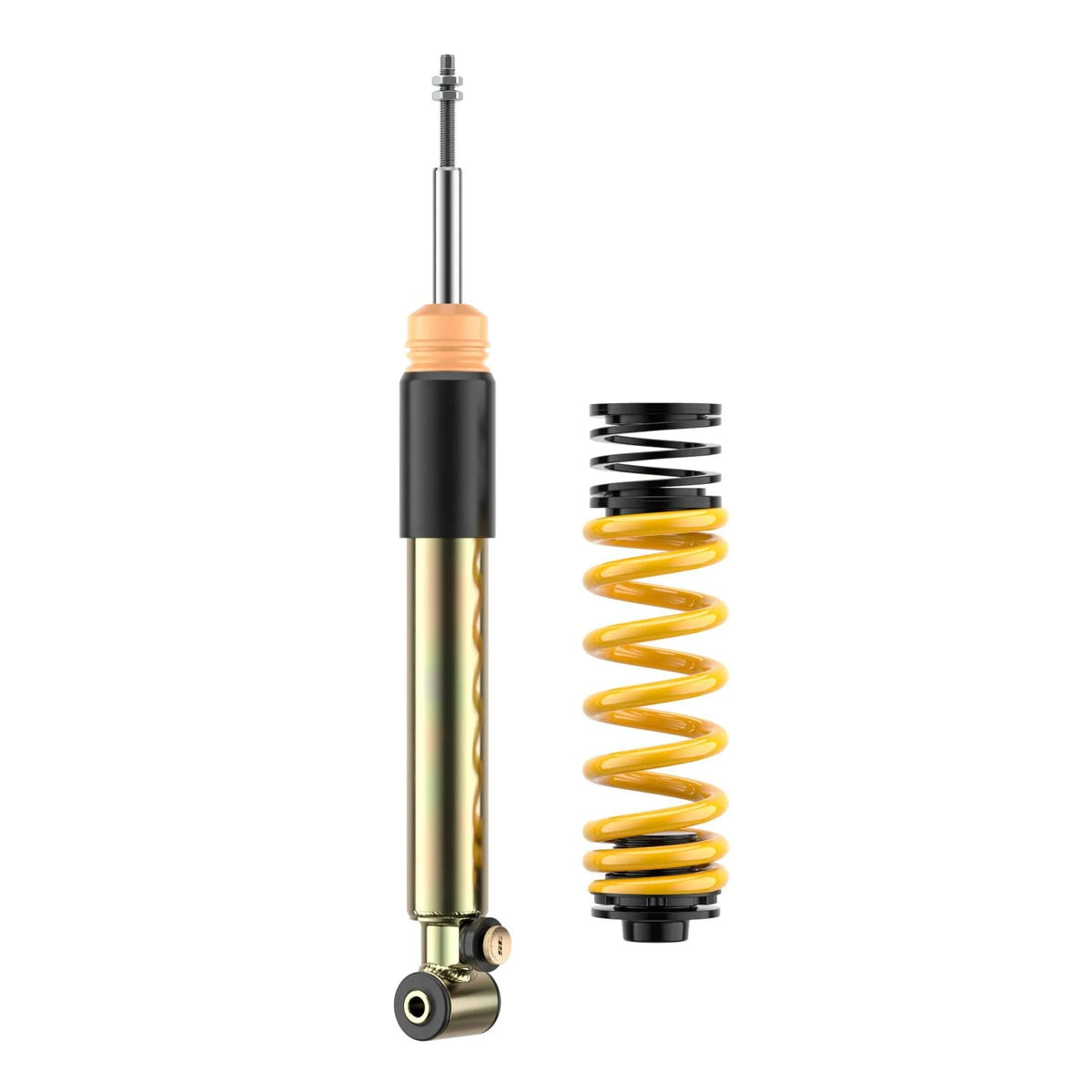

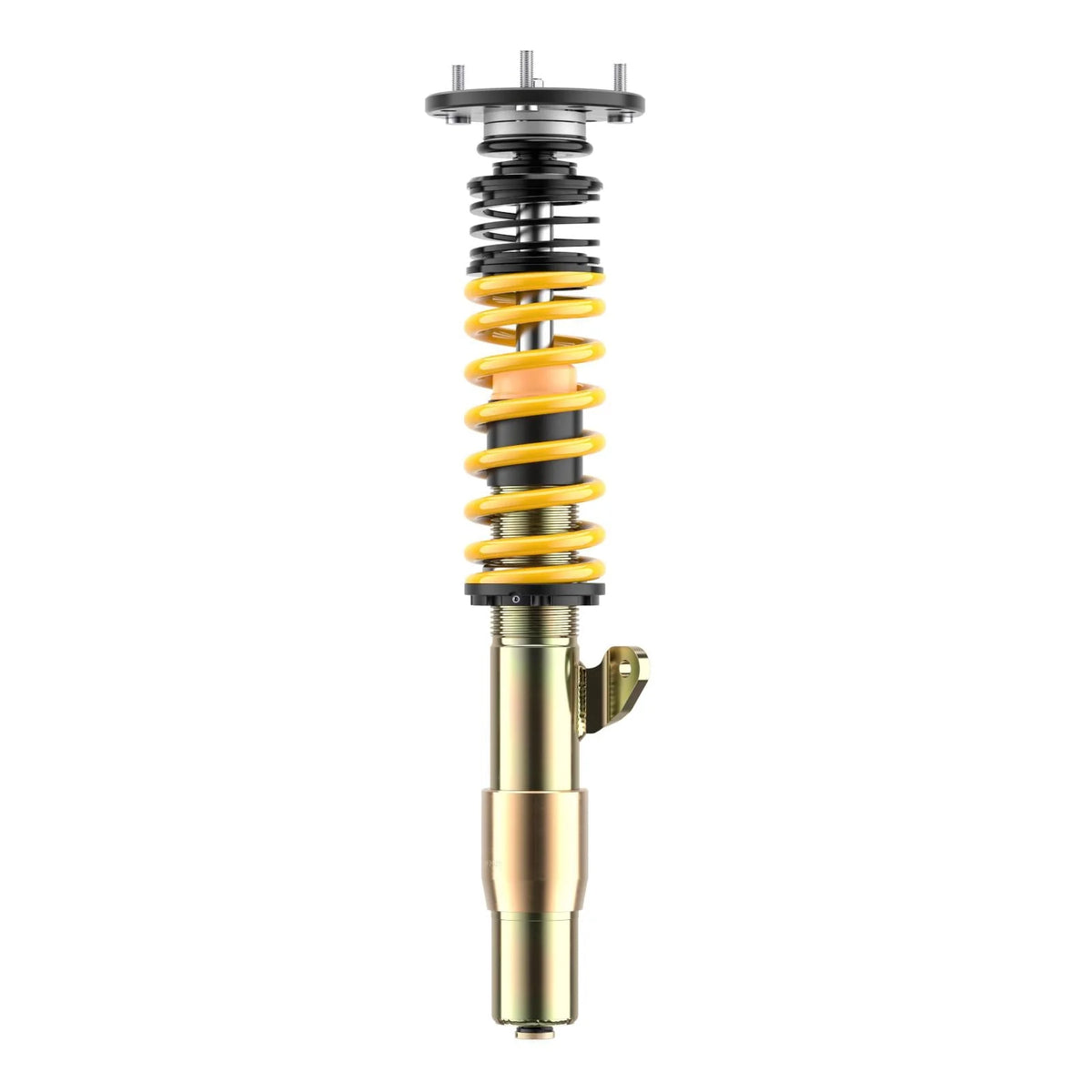

- ST XTA front coilover assemblies
- ST XTA rear dampers
- Rear lowering springs
- Adjustable front spring platforms
- Rear height adjustment components
- Externally adjustable rebound damping
- Galvanised damper bodies with corrosion protection coating
- Adjustable aluminium uniball top mounts
- Professional installation and full wheel alignment required after fitting.
