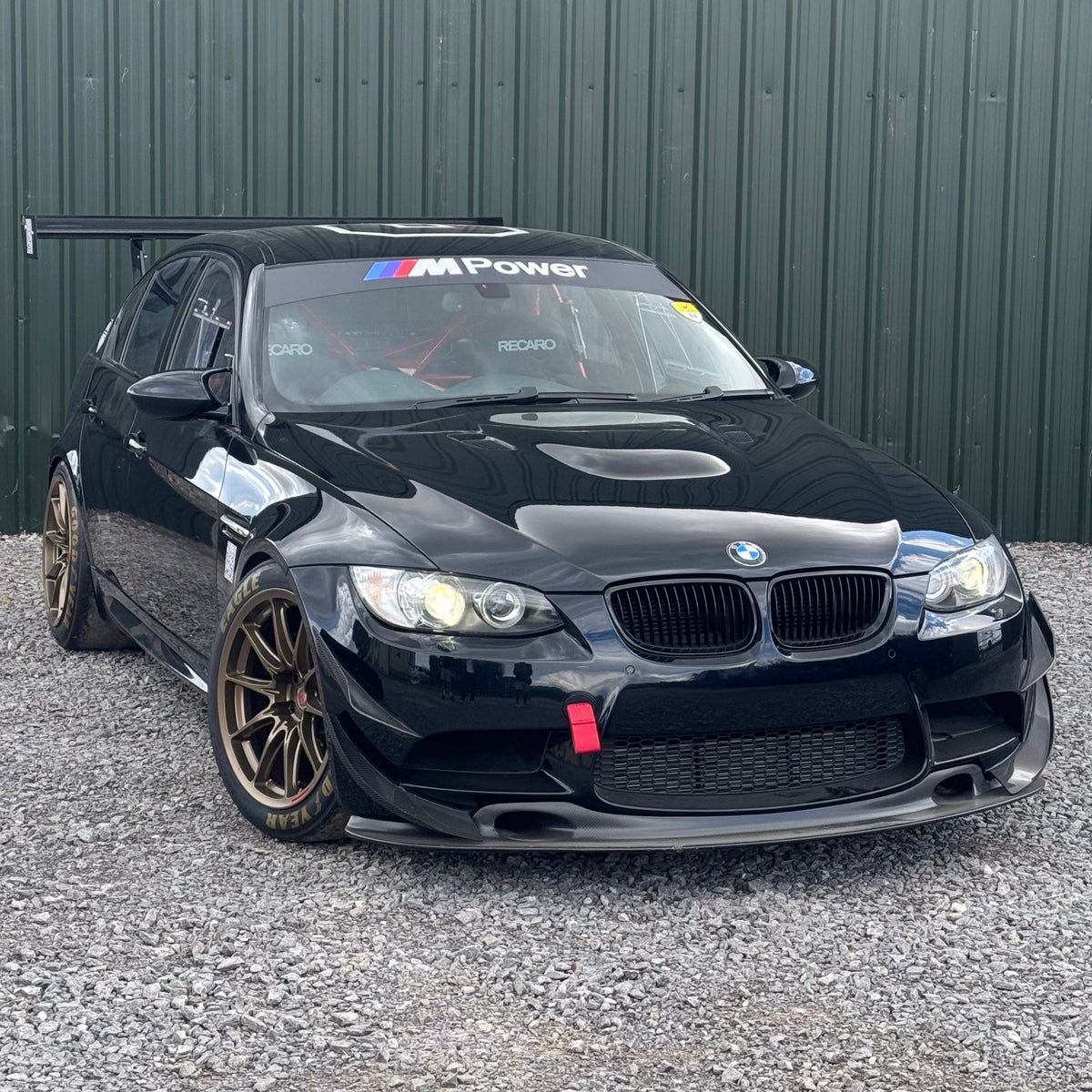

BMW M3 Build

BMW M3 Track Car!

Chassis -

• AST x Moton 5300 3-way true coilovers
• AST x Moton adjustable drop links
• Millway adjustable toe, camber arms
• Millway rear lateral arms
• Millway true coilovers bottom arms
• Power flex ARB bushes
• Millway solid subframe bushes
• Millway solid bushing bottom arm, front control arm
• BMW OEM track/tie rods
• Full new oem subframes
• AKG poly transmission mounts
• PowerFlex solid engine mounts
• AKG poly rear differential mounts

Brakes-

• EBC Apollo 6 piston BBK 380mm front Discs
• EBC SR21 front pads
• EBC blue stuff NDX rear pads
• EBC branded lines
• EBC Dot4 racing brake fluid
• Pinnacle brake cooling backing plates

Wheels -

• 2forge zf8 10J ET 20 front 11J ET17 rear
• Goodyear soft/medium compound 265/660/18 square
• Semi slick Nankang AR-1 265/35/18 front 295/30/18 rear

Interior -

• Full interior strip and removal
• SW Motorsport half bolt in cage
• RTD Motorsport race short shifter 6MT
• OMP 6x70mm deep concave steering wheel
• OMP steering wheel boss
• OMP 4 point harness
• OMP RT grey Alcantara fibreglass bucket seats
• ACW lexan windows with sliders and stainless window support all around. Fully stripped doors
• MMI/idrive removed
• BAF k-Brace

Engine & Drivetrain -

• NRW billet valve covers
• NRW oil filler cap system
• NRW Spark billet plug tubes
• Mahle bearings
• ARP bolts
• Throttle Actuators
• Millers 10w60NT+
• Eventuri full matte carbon induction and plenum
• Do88 front mount radiator
• Do88 oil cooler
• Do88 power steering cooler
• Do88 secondary aux radiator
• Do88 coolant pipes
• Moroso billet power steering reservoir
• Moroso billet coolant expansion tank
• Modstock test pipes
• Modstock straight through x pipe
• Modstock 1.75 oem back box
• Motorsport coding

Aero -

• Custom designed chassis mounted rear wing
• Carbon boot lip spoiler
• Modified boot lift for chassis mounted wing
• Ridgeline GT4 deep front splitter
• Pinnacle brake ducts and GT4 cooling splitter feed pipes
• Carbon front bumper cannards lower and upper
• Mumbray motorsport under tray

GEO/Set-up -

• In-house geo
• 1 degree toe out front
• 0.5 degree toe in rear
• 51% front axle to 49% rear axle weight distribution
• 3degrees negative camber front
• 2.8 degrees negative camber rear
• Weight: 1480kg with quarter tank
• Track only set up

Upcoming mods -

• Lithium battery
• Diffuser
• Drexlar differential
• Single mass flywheel
• Rear bumper cooling
• Aero catch boot lid
• Aero catch bonnet
• Bonnet vent installation
• Full weld in cage
• Digital dash and race ECU
