BMW M2 G87 / M3 G80 G81 / M4 G82 G83 G8X Adjustable Rear Toe Arms | XC3 Engineering

Product Overview

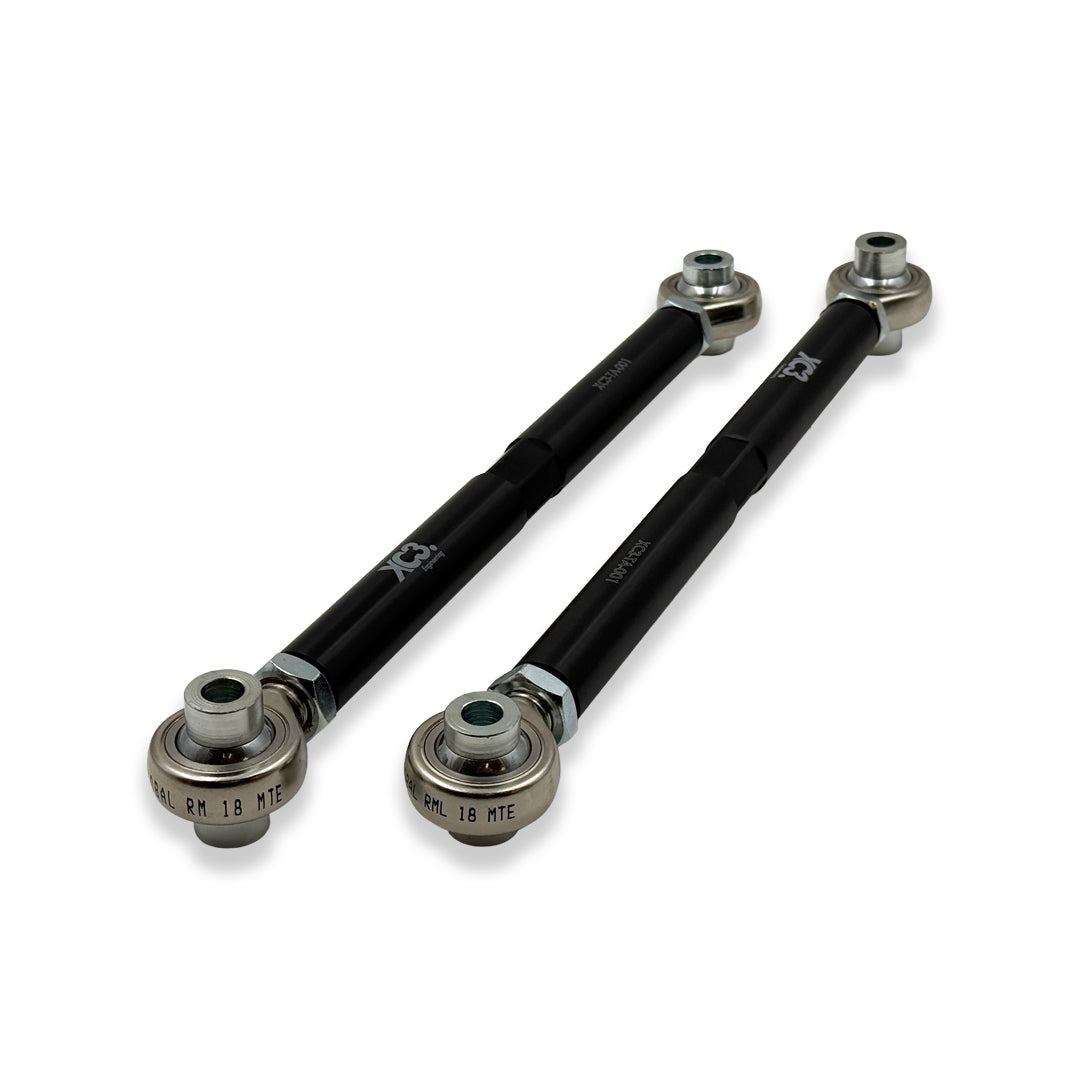

XC3 Adjustable Rear Toe Arms for BMW M2, M3 and M4 G8X provide precise rear toe adjustment for fast road, track day and motorsport use. CNC machined from 6082-T6 aluminium and fitted with premium RODOBAL Motorsport rod ends, they replace the factory toe links with a stronger, more accurate and more adjustable solution.

Key Features

• Fits BMW M2 G87, M3 G80 / G81 and M4 G82 / G83
• Premium RODOBAL Motorsport M18 rod ends
• Preloaded spherical joint with very low clearance
• Reinforced PTFE liner for maintenance-free operation
• Forged and heat-treated high-strength rod end body
• Hardened and precision-ground spherical inner ring
• CNC machined 6082-T6 aluminium centre sections
• Fine-pitch adjustment for accurate toe setup
• Optional XC3 toe lockout kit available
• Black anodised finish
• Designed and manufactured in the UK
• XC3 manufactured components covered by our Lifetime Warranty

Product Description

Rear toe control is critical to stability, traction, tyre wear and confidence under load. The XC3 rear toe arms provide a wider and more precise adjustment range than the factory setup, making them ideal for lowered cars, track alignment settings and performance builds.

A major part of the design is the RODOBAL Motorsport rod end. Rod ends can look similar externally while differing significantly in material quality, internal construction, preload and wear resistance. RODOBAL publishes the engineering specification of its motorsport joints, including forged and heat-treated bodies, hardened spherical inner rings, reinforced PTFE liners and controlled preload.

This gives XC3 a known and repeatable joint specification rather than relying on an unidentified generic rod end with unknown internal quality or performance.

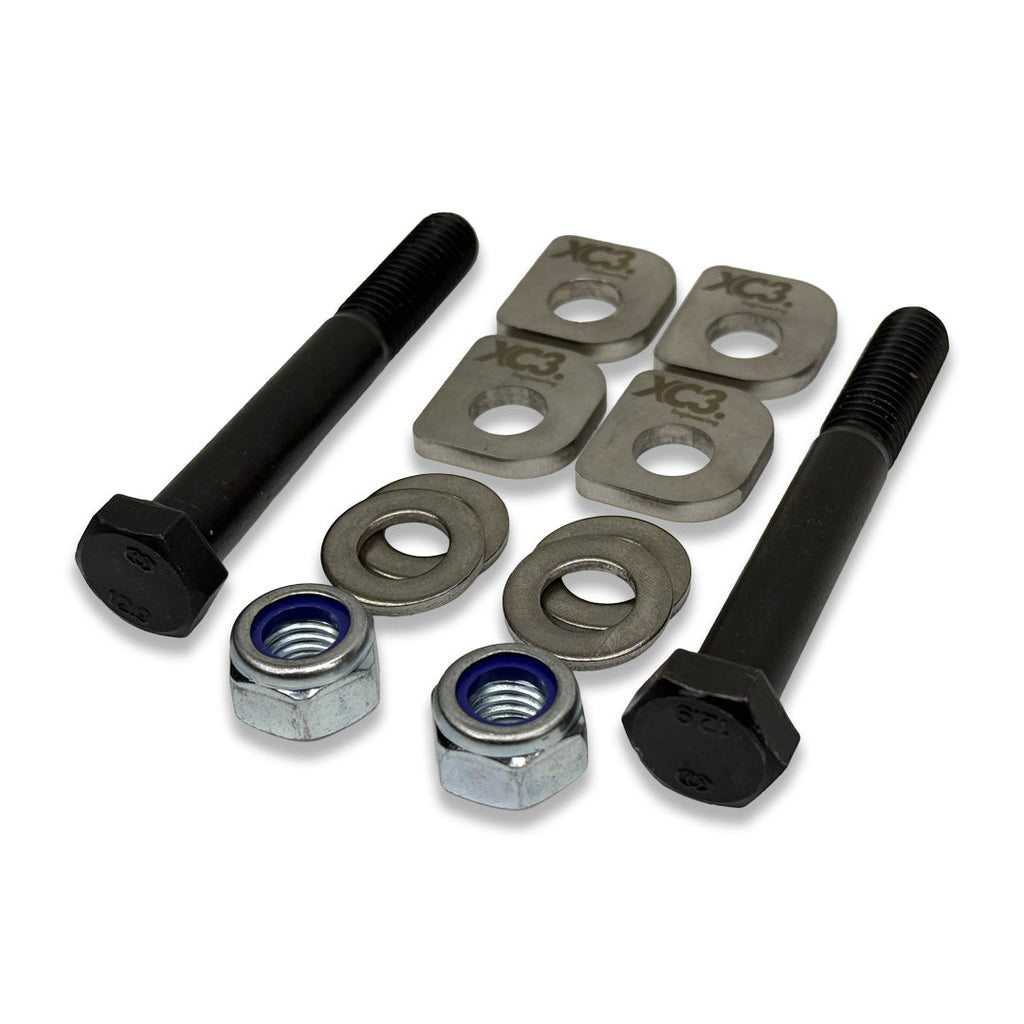

Optional Toe Lockout Kit

An XC3 toe lockout kit can be added to remove the factory eccentric toe adjustment at the rear subframe. Once toe is adjusted through the XC3 toe arms, the lockout kit helps secure the mounting position and reduce the chance of alignment settings shifting under load.

This is especially useful for track cars and performance builds where repeatable rear geometry is a priority.

Why Choose XC3

XC3 develops suspension components around fitment accuracy, material specification and real-world performance rather than simply using the lowest-cost hardware available.

For these toe arms, that means CNC-machined 6082-T6 aluminium, premium RODOBAL Motorsport rod ends and a design focused on precise, repeatable alignment control. The rod end specification is known and documented, giving you confidence in the materials, preload and internal construction rather than relying on an unverified generic joint.

XC3-manufactured components are designed and manufactured in the UK and covered by our Lifetime Warranty, with technical support available if you need help with fitment or setup.

What’s Included

• 2 x XC3 Adjustable Rear Toe Arms
• RODOBAL Motorsport rod ends
• Vehicle-specific mounting sleeves
• Required arm hardware

Optional XC3 toe lockout kit available separately or as an add-on.

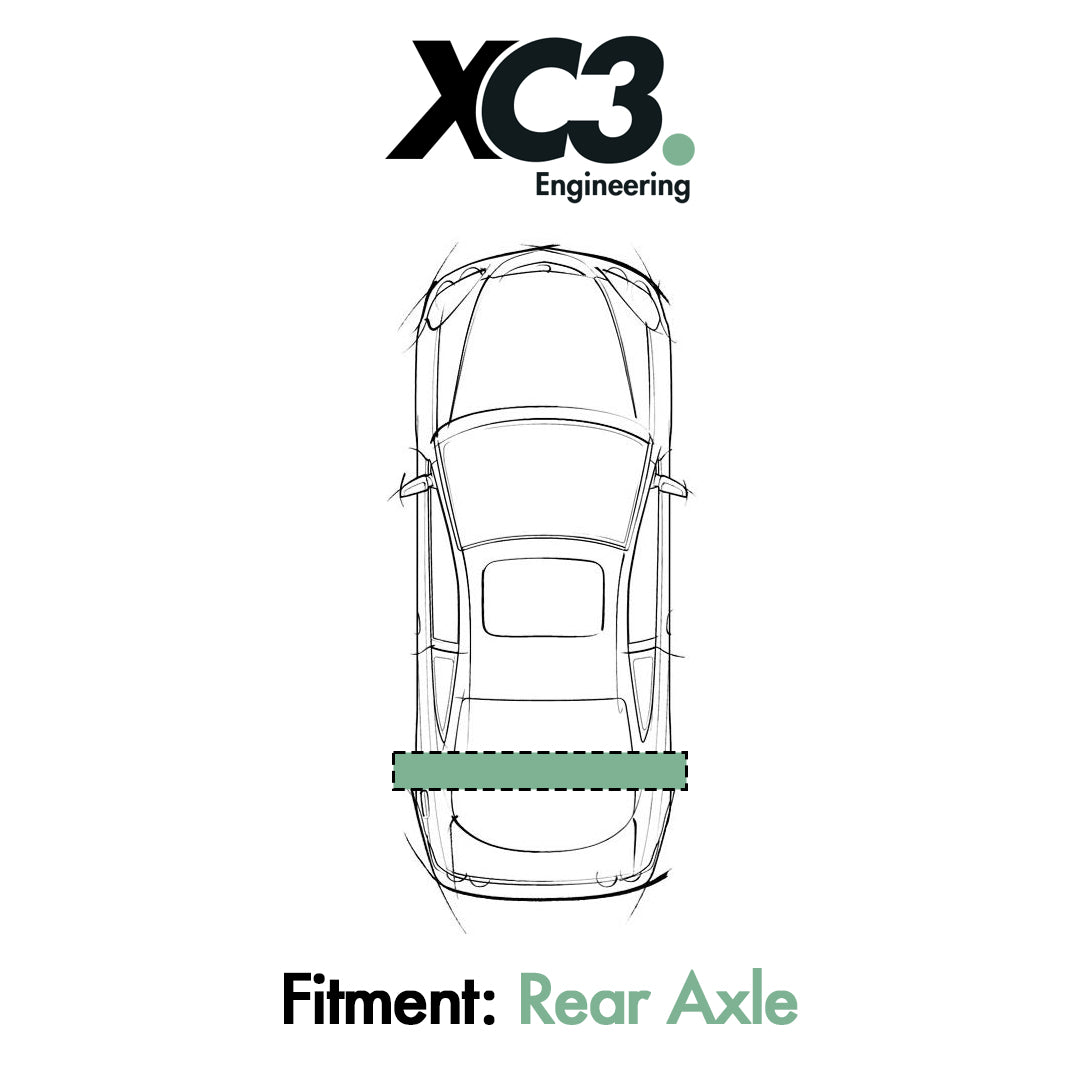

Vehicle Fitment

• BMW M2 G87
• BMW M3 G80
• BMW M3 Touring G81
• BMW M4 G82
• BMW M4 Convertible G83

Professional installation and a full wheel alignment are recommended after fitting.
